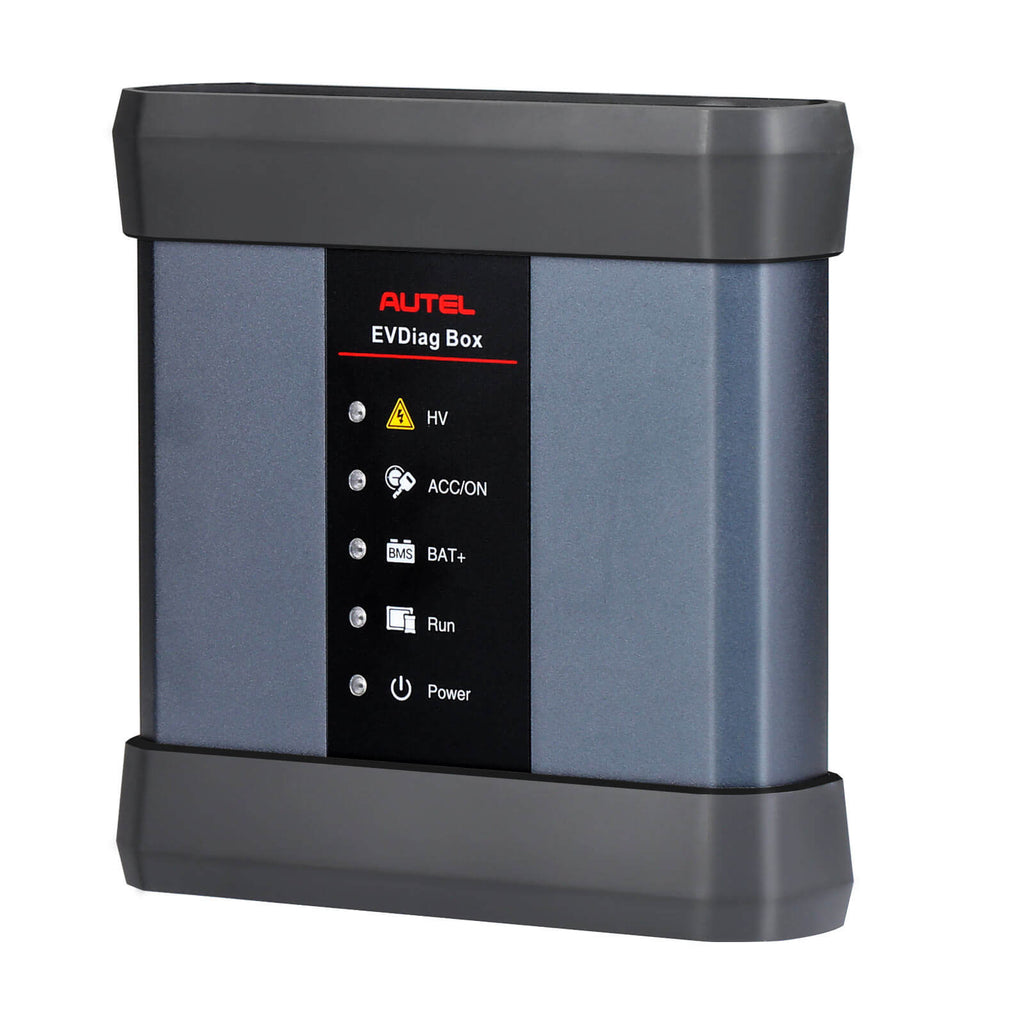

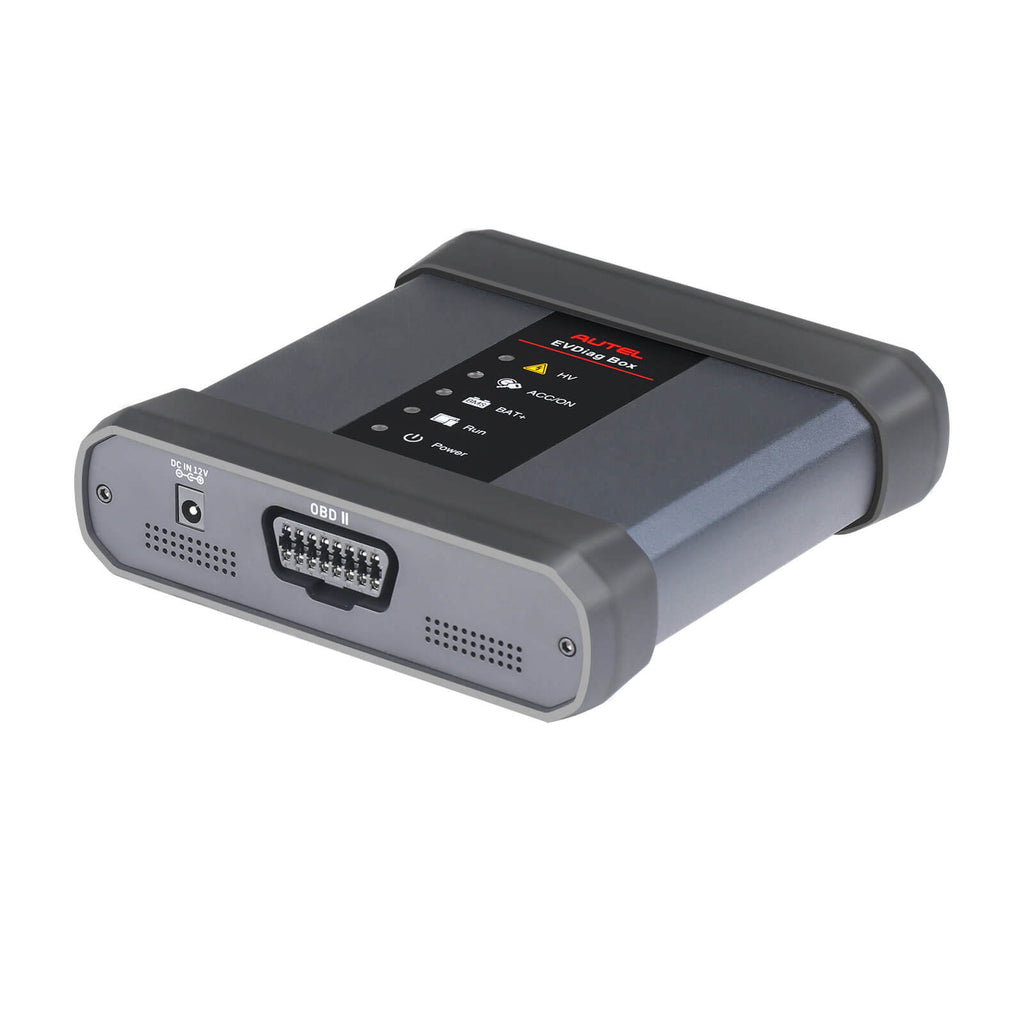

Autel MaxiSys EVDiag Box Introduction:

The Autel EV Diagnostics Upgrade Kit includes the EVDiag Box, adapters, and a carrying case designed for specific electric vehicles to perform battery pack analysis. The Autel EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. It connects to either the MaxiFlash VCI or VCMI.

Customers who already own the Autel MaxiSys MS909, MS919 or Ultra can upgrade their device to the Autel MaxiSys MS909 EV, MS909 EV or Ultra EV by purchasing the EVDiag Box separately. To activate the EV Box on the MS909, MS919 or MaxiSys Ultra, simply enter the serial number of the EV Box in the tablet’s portal for an upgrade.


Autel MaxiSys EVDiag Box Features:

Comes with an EVDiag Box, adapters for BMW, Tesla, VW, and breakout leads
Includes a durable carrying case
Compatible with MS909, MS919, Ultra series products for battery pack diagnostics
Performs state of charge and state of health analysis for accurate battery condition assessment


Autel EVDiag Box Settings

This function lets you check the connection status of the EVDiag Box and verify if firmware updates are available.

Note:
Ensure the EVDiag Box is properly connected before updating the firmware.
Do not disconnect the device or exit the update screen during the update process.


Connecting the Autel EVDiag Box Device:

1. Tap Settings on the MaxiSys Job Menu.
2. Select EVDiag Box Settings.
3. Tap View Connection Diagram to open the diagram.
Connect the VCMI and EVDiag Box using the Main Cable V2.0.
Establish communication between the VCMI and EVDiag Box via Bluetooth, Wi-Fi, or USB cable.
4. Once connected successfully, the current firmware version of the EVDiag Box will be displayed on the screen.


Updating Autel EVDiag Box Firmware:

1. Tap Settings on the MaxiSys Job Menu.
2. Select EVDiag Box Settings.
3. Tap Check for Update on the right.
4. If an update is available, tap Update Now.
5. Once the update is complete, tap the Home button in the top-left corner to return to the MaxiSys Job Menu, or select another setting option for further system setup.


Upgrading MS909, MS919, and Ultra to MS909 EV, MS919 EV, and Ultra EV

1. Purchase the Autel Upgrade Package

1.) Go to Settings → EVDiag Box Settings on the MaxiSys MS909, MS919, or Ultra.
2.) Connect the device to the EVDiag Box and VCMI/ VCI as instructed on the screen.
3.) Once the EVDiag Box serial number is detected, tap Link EVDiag Box.
4.) After restarting, the device will upgrade to MS909 EV, MS919 EV, or Ultra EV.
Note: The system program must be updated to V2.60 or later for a successful upgrade.

2. Sales Contract Adjustment Option

If the sales contract of the MS909, MS919, or Ultra is modified to match that of the MS909 EV, MS919 EV, or Ultra EV, the device can also be upgraded accordingly.

3. No Additional Subscription Fee Required

After purchasing the EV Upgrade Package Kit, users do not need to pay extra for activating the EV diagnostic function.

4. Active Software Subscription Required

The Autel MaxiSys MS909, MS919, or Ultra must have a valid software subscription to update and download the necessary EV software after linking with the EVDiag Box.


Autel MaxiSys EVDiag Box Package List:

1pc x EVDiag Box
1pc x Adapter BPTC0101/01
1pc x Adapter BPTC0205/01
6pcs x Breakout Lead 1
1pc x Adapter BPTC0102/01
1pc x Adapter BPTC1101/01
6pcs x Breakout Lead 2
1pc x Adapter BPTC0103/01
1pc x Adapter BPTC1102/01
6pcs x Breakout Lead 3
1pc x Adapter BPTC0201/01
1pc x DB25 Snake Cable BPTJ0001/01
6pcs x Breakout Lead 4
1pc x Adapter BPTC0202/01
1pc x Packing List
1pc x EVDiag Box Main Cable BPTC0001/01
1pc x Adapter BPTC0203/01
1pc x Quick Reference Guide
3pcs x Breakout Lead Extension Cord
1pc x Adapter BPTC0204/01
1pc x Carrying Case 634 x 170 x 404mm
4pcs x Dual Banana Plug
